Product information:
Model: BT-606

Product material:
Handle 45 steel
The red shell is aluminum alloy
The grip is soft plastic

Features:
1. Total length: 300mm (12")
Maximum working stroke 9mm
Maximum working effective stroke 7mm
Maximum force arm multiple 30

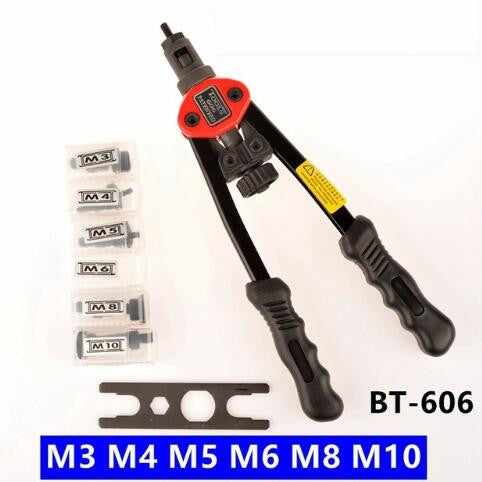

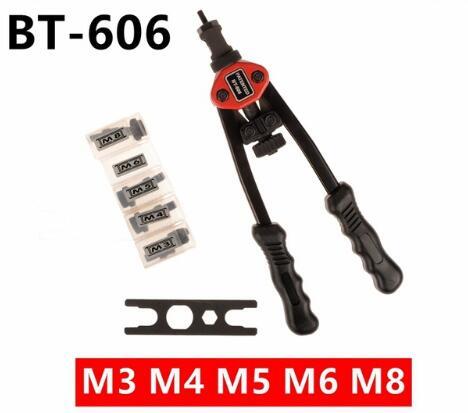

Riveting nut specification range: M3, M4, M5, M6, M8.
2. The fixed sliding sleeve is used inside, which is convenient to disassemble or replace the screw.
3. The failure hole design is convenient to withdraw from the jammed nut.
4.  2.5mm thick heat-treated handle; anti-vibration design to eliminate the vibration of the riveting gun to the arm during operation.

5. A multi-function wrench is also provided.

6.   After riveting, the nut is screwed out, and the operation steps are as follows:
